VIVALDI
- Clean Vehicle Initiatives
Wrightbus ‘Electrocity’
VIVALDI project partner First planned to introduce and trial 4 hybrid diesel-electric midibuses built
by Wrightbus. The bus is low floor and has a range of
150-250 miles depending upon operation. Top speed: 45mph. It was recently trialed in Bristol but is
not yet commercially available.
Emissions performance is
targeted to exceed standards for Euro 4 in 2005.
Emissions comparison –
Electrocity Euro 4 (2005 standard)
NOx
(oxides of nitrogen) 0.75 2.61
HC
(hydrocarbons) 0.4 0.41
CO
(carbon monoxide) 0.56 2.98
PM (particulates) 0.012 0.0149
Projected cost is around
£170,000 (2002)
_files/image002.jpg)
Hybrid Bus
Bristol have engaged a
consortium, led by Eneco, to build a hybrid
diesel-electric bus for operation in Bristol, possibly on the 905/Clear Zones
orbital routes, or a combination of the two. The engine is being developed by Eneco and will operate within a 29 seater
Optare Solo bus.
Emissions benefits: Targets
versus standard Optare Solo bus -
All harmful emissions will be significantly reduced, target reductions
relative to an equivalent Euro 3 engined vehicle will be: CO by 25%, NOX by 25%, HC by 25%,
Particulates by 25% and CO2 by 35%.
Target fuel consumption
reduction will be approximately 30%.
The engine will be programmed
to the route – periods of electric operation will be scheduled for those areas
where emissions benefits are most desirable, regenerative braking is a further
energy-efficient feature.
Total project cost £209,550
(including contributions from Eneco, LTC, Energy
savings Trust, BCC (£70,000 plus donor vehicle).
Trial in Bristol and
project sign-off scheduled for September 2003.
_files/image004.jpg)
|
_files/image006.jpg)
|
Bristol’s
Hybrid bus under development at Eneco, Slinfold
|
Hybrid diesel-electric engine
|
Electric Bus
Vehicle Specification: Known as
the Tecnobus, the vehicle is manufactured in Italy by Tecnobus S.r.l, carries 26
passengers and is low floor. The vehicle is battery powered and also features
regenerative braking, having the lowest unit consumption of energy in this
category of vehicle. Vehicle cost (1997): £75,600, battery cost £5,500 per set.
It has a range of 100km on a single charge with a maximum speed of 33km/hour,
making it most suitable for urban operation.
Use: 2 vehicles have operated
since 1997 on the 905 Park and Ride route (Centaur project).
It is planned that one vehicle
will now be converted into a mobile information vehicle or ‘I-bus’ as part of
VIVALDI.
The vehicle is zero emission from source, totally emission-free if
powered from a renewable energy source.
Dial a Ride LPG minibus
As part of VIVALDI a fully
accessible LPG minibus was introduced in August 2002. The vehicle serves a new
service area launched simultaneously. The vehicle is a dual
fuel petrol LPG Mercedes Sprinter Minibus. The use of LPG was reviewed during
the first 6 months of use and found to be operationally acceptable. On this
basis two further LPG vehicles of a similar type have been ordered replacing
older diesel vehicles as part of fleet renewal.
Emissions Benefits: Reduction of 2 bands – HC and NOx
of 68%.
61% reduction of CO over the legislated
standard. 17.7%
reduction of CO2 over comparable petrol/diesel vehicle.
Fuel consumption (urban
operation):
Litres LPG/100 km Diesel equivalent litre/100km Petrol litres/100 km
20.47 13.1 17.80
Conversion cost to LPG
operation: £2,430
Retrofitting
As part of VIVALDI 34 First
buses were retrofitted with particulate traps (19) and catalysts (15) (phase
1). Retrofitting technology was chosen according to the current Euro emission
level and engine type of the vehicle. Vehicles retrofitted serve 4 different
services, all serving city centre destinations. Catalysts were fitted on older
vehicles and particulate traps were fitted on the newer vehicles. It is
estimated that emissions on each retrofitted bus will have improved by
approximately one level of Euro. Retrofitting those buses running largely in
the central area will assist in improving air quality levels according with the
Council’s proposed Clear Zone and Air Quality Management Area.
Emissions benefits -
Particulate traps:
Reduce particulate matter, CO and HC by up to 95%
Catalytic action reduces CO and HC by 90%
Oxidation catalysts:
Reduce HC and CO by up to 90%
Reduce PM by 25%
Total project cost VIVALDI
phase 1: £77,250
Funding contributions from
Energy Savings Trust, BCC and First
Municipal Fleet
The Council has an ongoing
commitment to replace existing vehicles with LPG fuelled vehicles. During the
lifetime of the project it is proposed to add a further 50 LPG vehicles to the
fleet and introduce further electric and hybrid vehicles as part of VIVALDI.
Operation of LPG vehicles within the municipal fleet has been successful, with
relatively few problems, most of which have been resolved by the vehicle
suppliers. It is proposed to retrofit 10 older and larger diesel vehicles less
suited to LPG operation with particulate traps or oxidisation catalysts. So far
26 LPG vehicles have been introduced and successfully operated within the
Councils fleet from the start of the project.

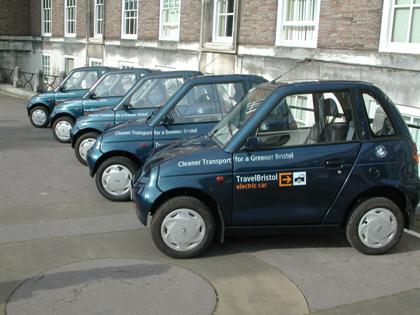

G-Wiz electric cars
_files/image008.jpg)
The
emission and noise free ‘G-Wiz’ cars are being tested by Bristol City Council
as part of its pool car operations and will offer employees a new sustainable
way to travel between offices and around the city in the course of their
duties.
Bristol City Council is making use of European
funding to pilot the electric cars as part of an ongoing package of innovative
measures to tackle transport issues like air pollution, congestion and social
inclusion. The scheme forms part of the VIVALDI European Commission supported project
which is led by five city authorities, namely Bristol (UK), Bremen (Germany),
Nantes (France), Aalborg (Denmark) and Kaunas (Lithuania). In Bristol the project
comprises a £9m package of sustainable transport measures.
Two
of the five cars will operate from the council’s premises at Wilder House and
three vehicles from the CREATE Centre. At both these premises the cars’
batteries will be recharged using mains electricity generated from renewable
energy sources. Therefore the vehicles will be totally pollution free.
Recharging
points are also being introduced at the Council House, and other coucil owned
buildings around the city to allow the batteries to be topped up in between
uses. The cars are ideal for stop-start city driving with a top speed of 40mph
and a range of 40 miles. The fuel cost can be as low as 1p per mile. They do,
however, have difficulty going up steep hills.
The
fleet will be branded as part of the council’s TravelBristol initiative, making
them recognisable as part of transport initiatives in the city.
For more information on the
VIVALDI project visit www.vivaldiproject.org
For more information on GWIZ
visit www.goinggreen.co.uk |
